Phonegap Push Plugin

Deprecated

This Cordova plugin is used to register and receive push notifications.

• Repository: https://github.com/phonegap/phonegap-plugin-push

• Plugin ID/package name: phonegap-plugin-push

• Tested version: 2.3.0

The custom build debugger can not check push notifications. To check push notifications, please check with a debug build or a release build.

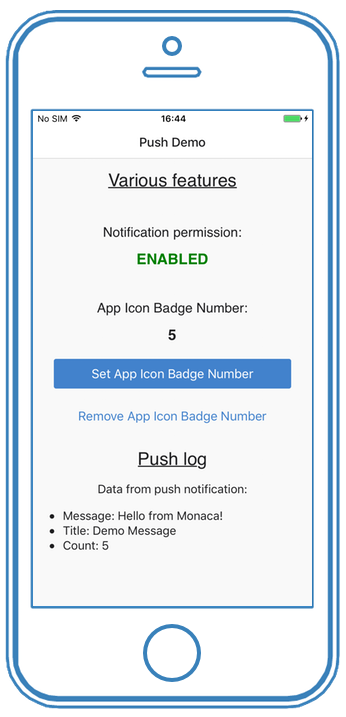

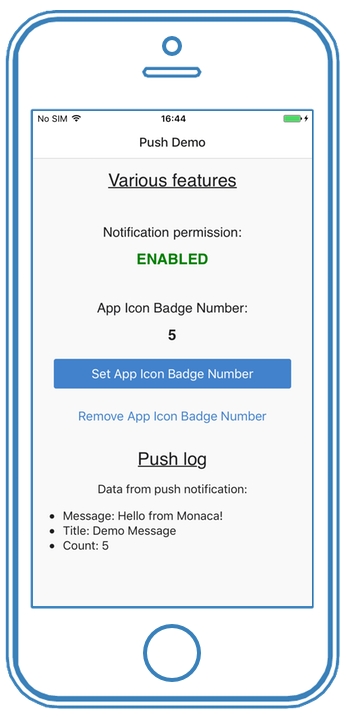

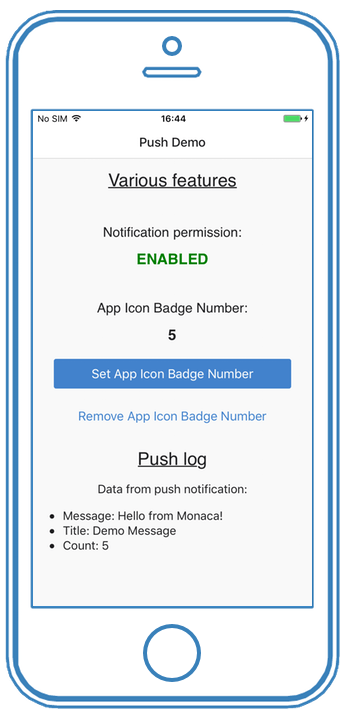

Demo

Import the Phonegap push demo to your Monaca account

Preparation for iOS

When working with push notifications for iOS, an APNs authentication key or an APNs certificate is required. This section will show you how to create a development APNs certificate for testing on an iOS debug build. For release build, a production APNs certificate is required.

In order to continue, you should have signed up to the Apple Developer Program. Follow the instructions below to create a development APNs certificate.

1. From the Apple Developer page, go to Account.

2. Select Certificates, Identifiers & Profiles.

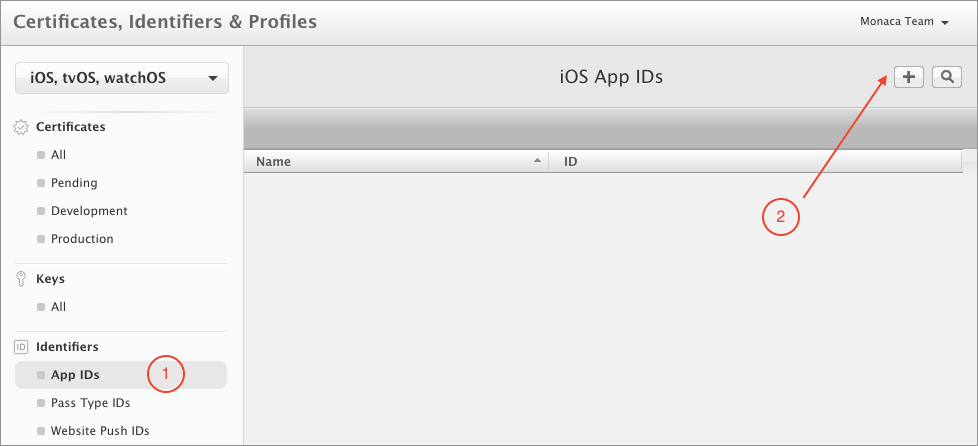

3. An app ID with push notifications enabled is required when creating an APNs certificate. Therefore, let’s create one. Under Identifiers section, go to the App IDs and click the ➕ button in the upper right corner.

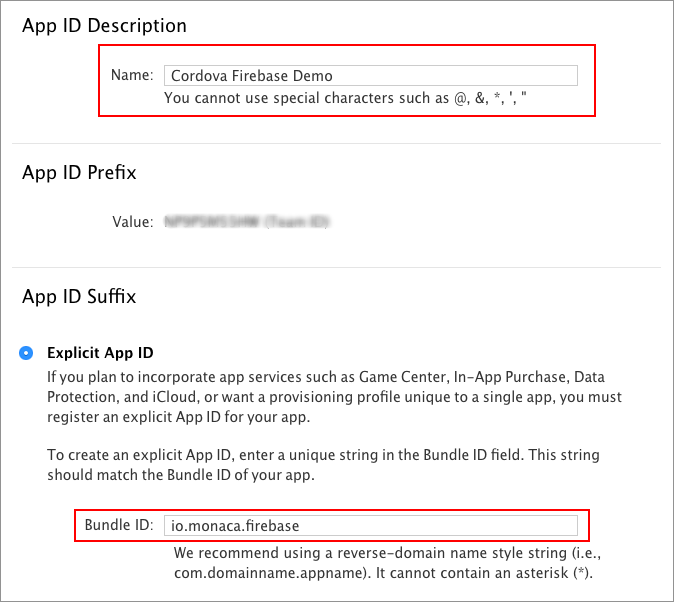

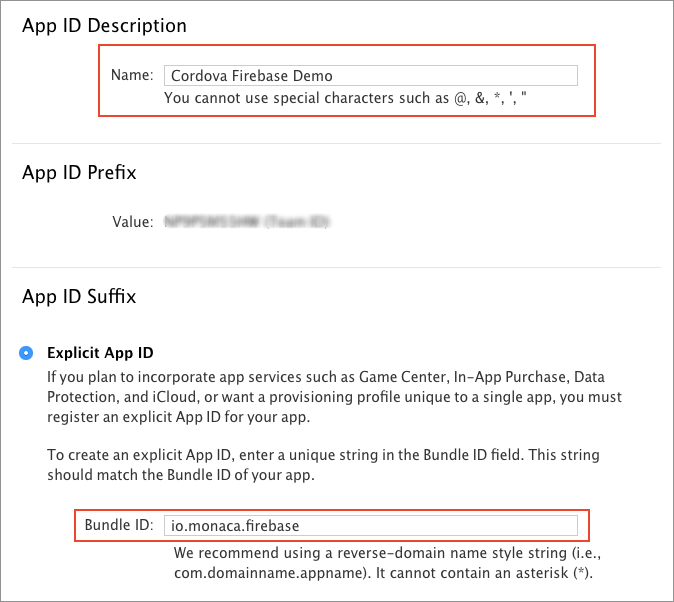

4. Fill in the app ID information:

• App Description: Input your app name here (e.g. Cordova Firebase Demo)

• Explicit ID: Select this option because a Wildcard App ID is not allowed for push notifications. Input a unique identifier for your app (e.g. io.monaca.firebase).

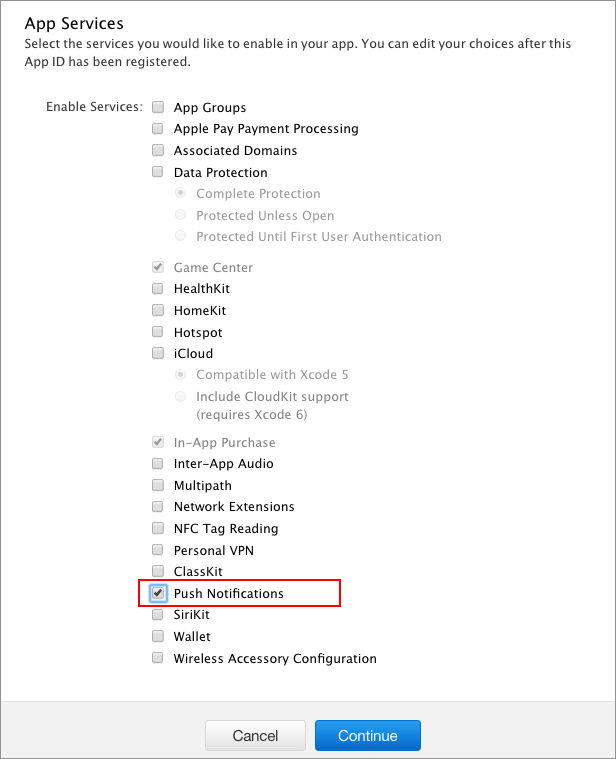

5. Scroll down to the App Services section and tick the Push Notifications option. Then, click Continue.

6. After that, you will be redirected to the Confirm your App ID page. Click Register to complete the process.

7. Now, you should be back to the iOS App IDs page. Select the App ID you’ve just created and click Edit.

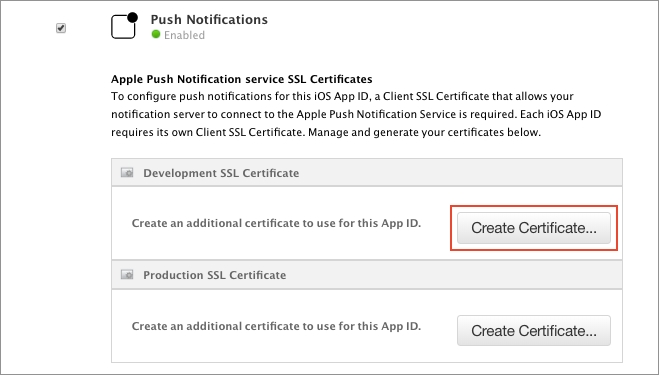

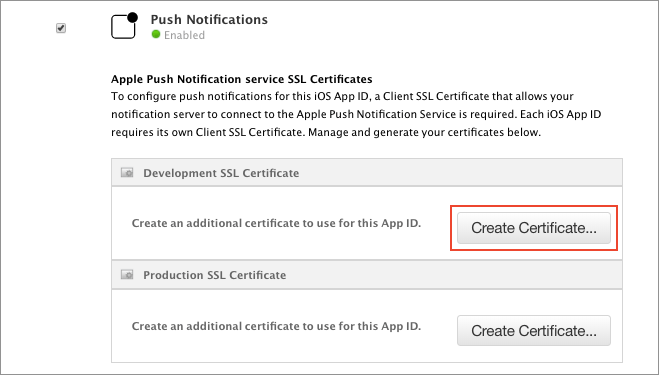

8. Scroll down to the Push Notifications section, click Create Cerficate under Development SSL Certificate.

9. Click Continue.

10. Click Choose File to browse your CSR file. You can get this file from the Monaca Cloud IDE by going to Config → iOS Build Settings. Then, click Generate Key and CSR. After creating the CRS file, download it by clicking the Export button.

11. Next, click Continue again. When the certificate is ready, you can download it. Save the file.

12. Upload the downloaded certificate by clicking the Upload Certificate button in the iOS Build Settings.

13. Click the Export icon of the target certificate displayed in the Certificates registered in Monaca to export the p12 file. You will need it for the Firebase configuration in the upcoming section.

Configuring Firebase for push notifications

1. Go to the Firebase Console.

2. Sign in with your Google account to enter the console.

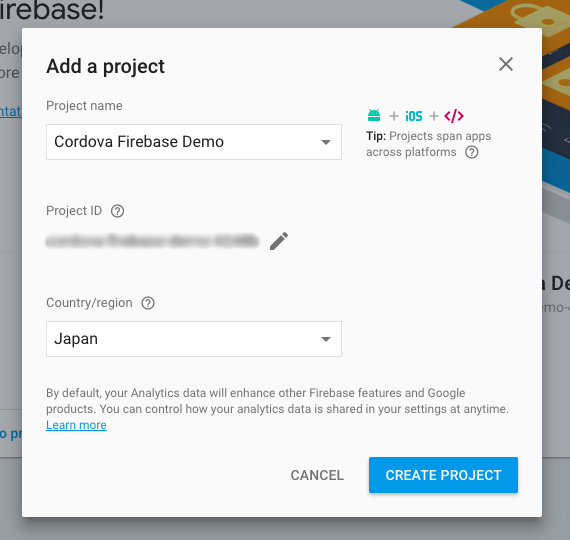

3. Click Add project.

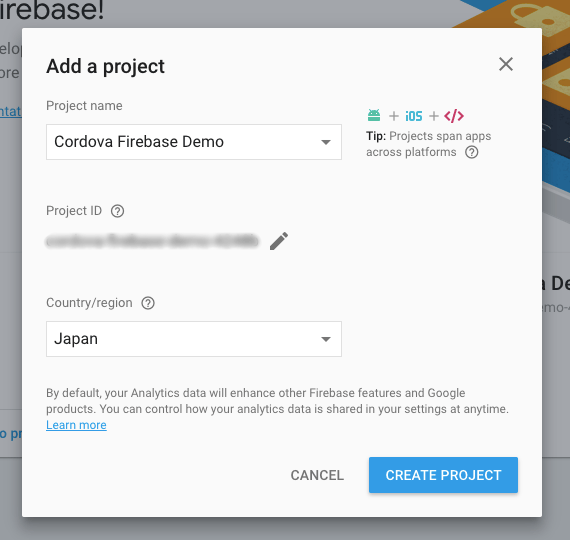

4. Fill in the project information and click CREATE PROJECT. Then, you will be redirected to the Project Overview page.

After project creation, we can configure the push notification project for a specific platform.

For iOS

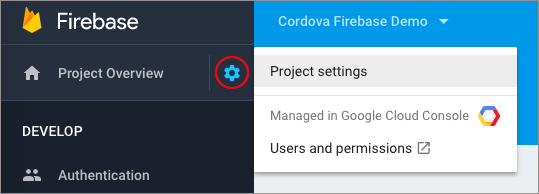

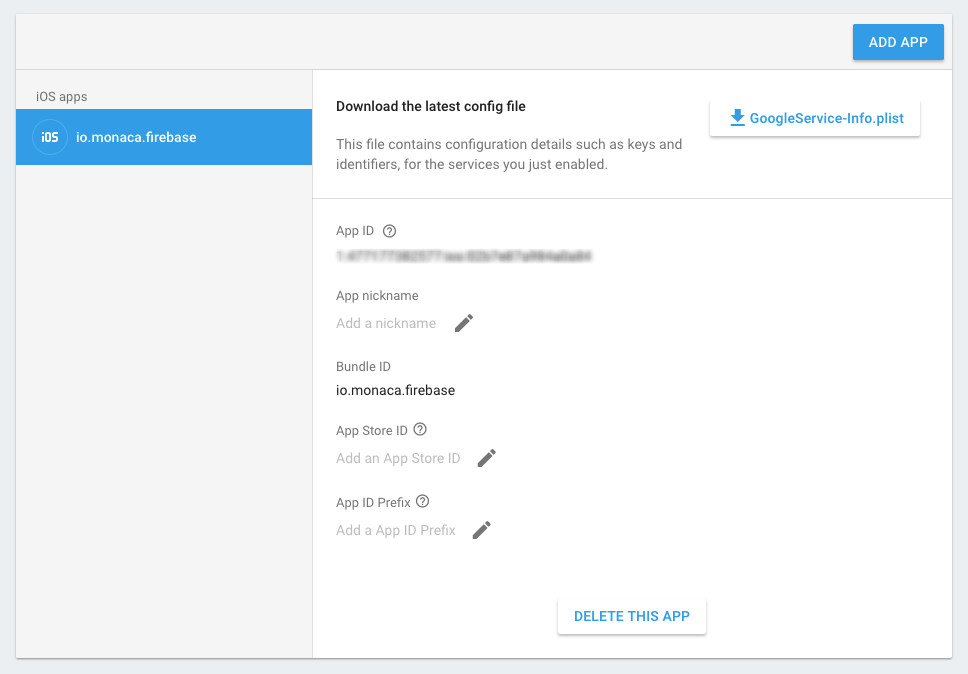

1. Go to the Project settings.

2. Under the General section, click ADD APP and select iOS.

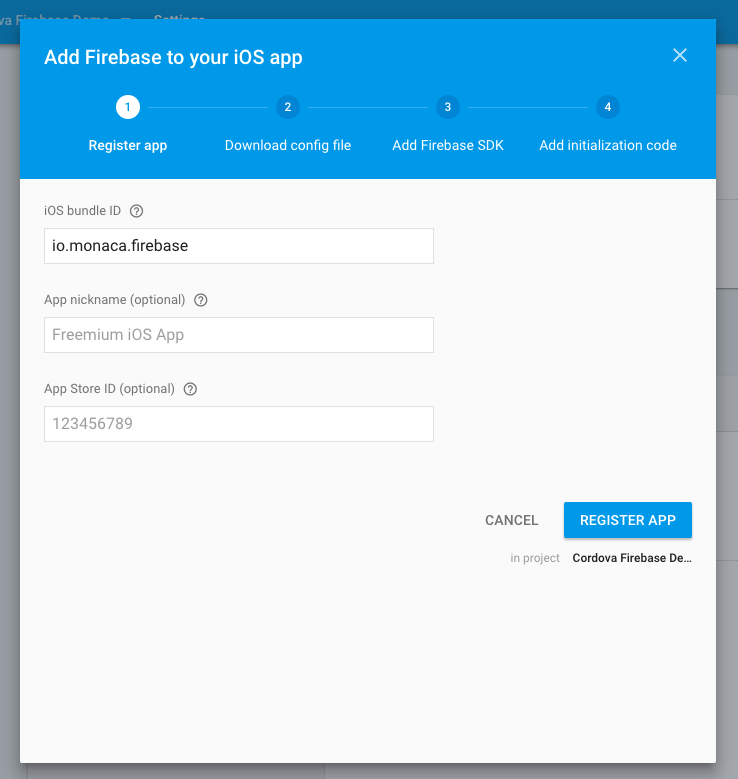

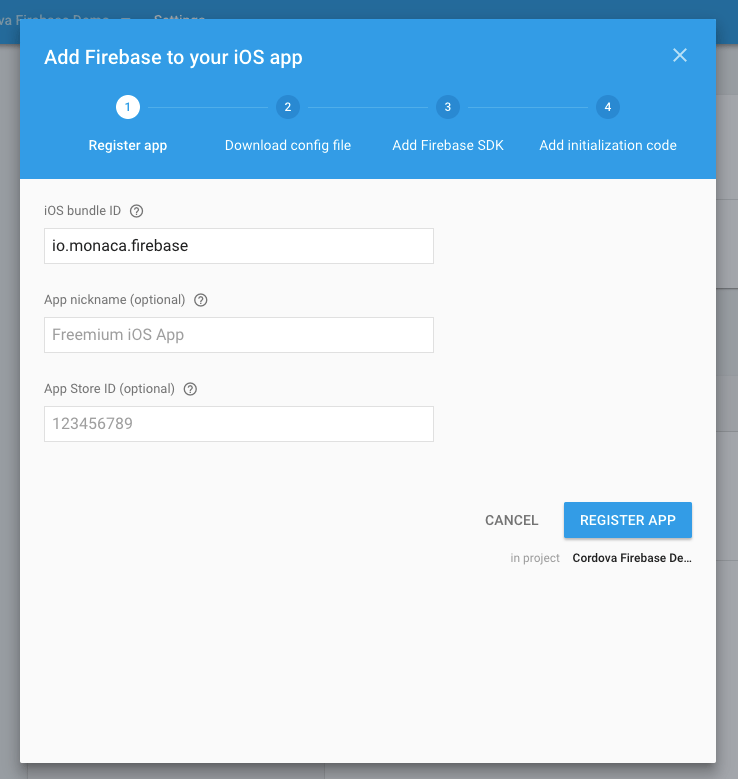

3. Enter your iOS Bundle ID (You can find that by going to Config → iOS App Settings). Then, click REGISTER APP.

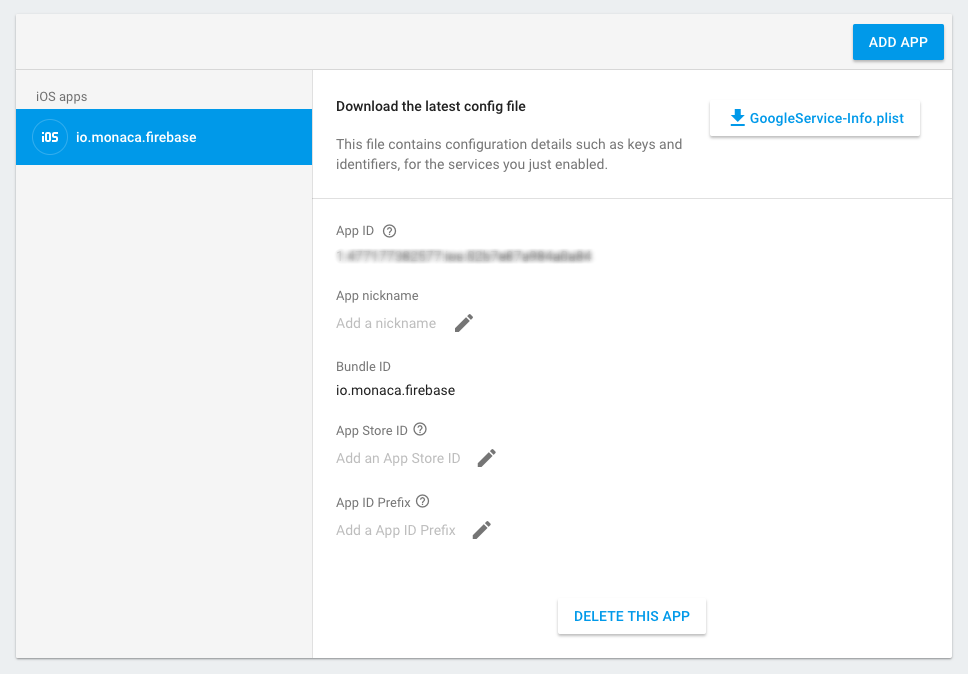

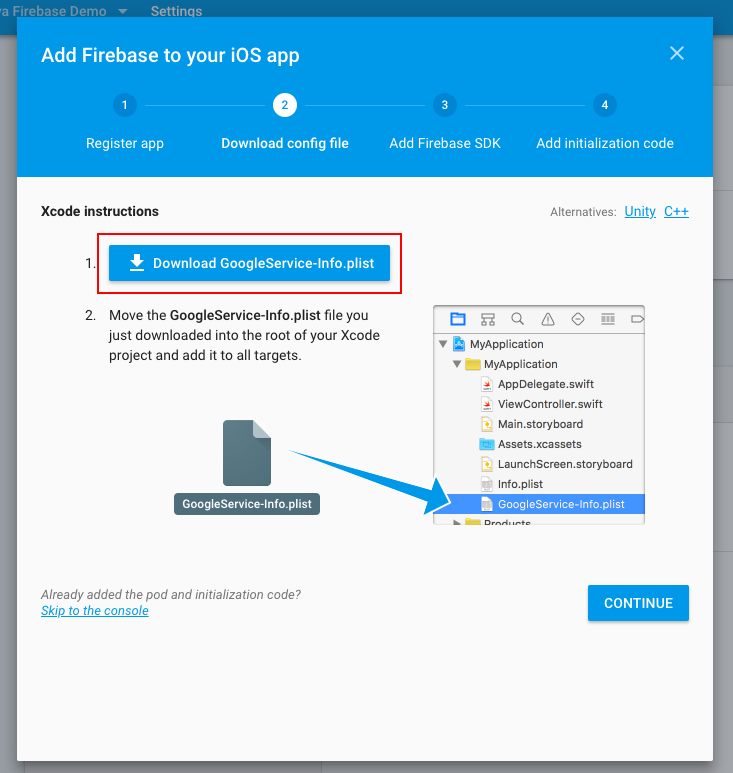

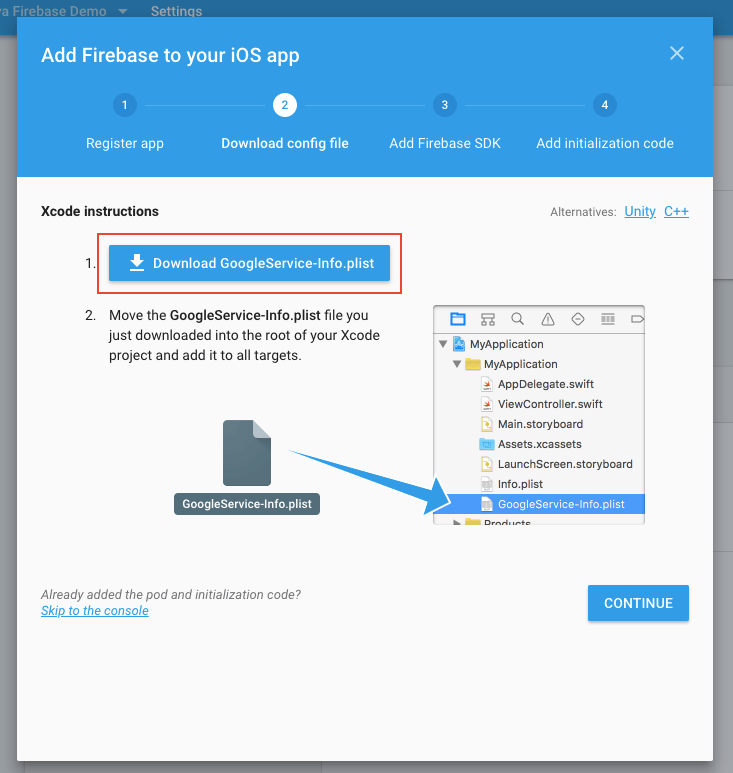

4. Download the GoogleService-Info.plist file and place it in the root folder of your project. After that, click CONTINUE.

5. You will see the instructions on how to add the Firebase SDK to our project. However, we are not developing the app natively so we can skip this step. Just click CONTINUE to proceed. Then, click FINISH to complete the configuration. After that, you should see your iOS app in the Firebase overview page.

6. Now, it’s time to add the APNs certificates to the project. Go to the Project settings and select CLOUD MESSAGING.

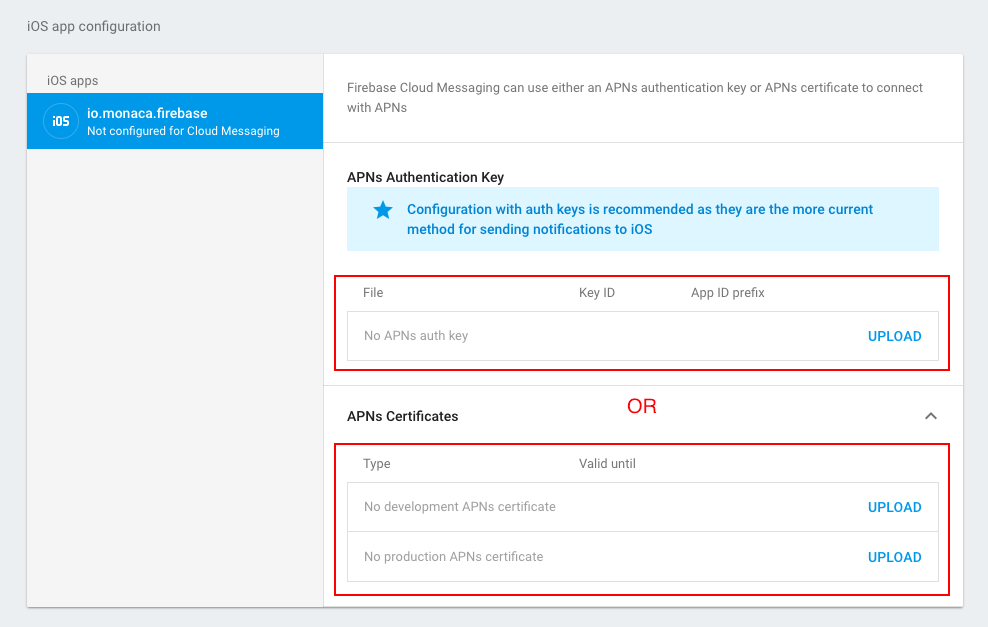

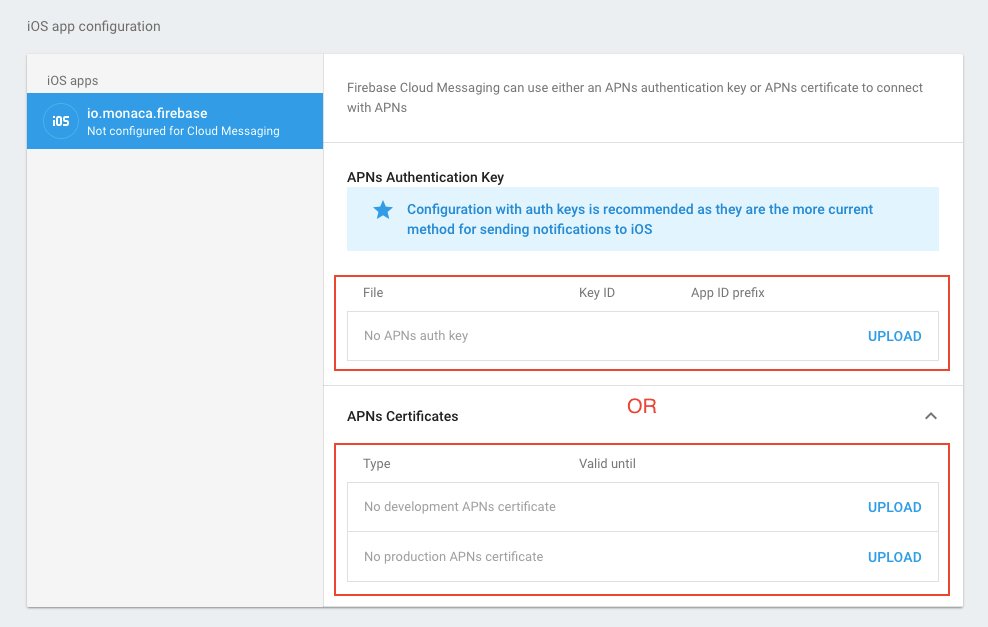

7. Scroll down to the iOS app configuration section and upload the APNs authentication key or APNs certificates.

That’s it! You are done with iOS configuration.

For Android

1. Go to Project settings.

2. Under the General section, click ADD APP and select Android.

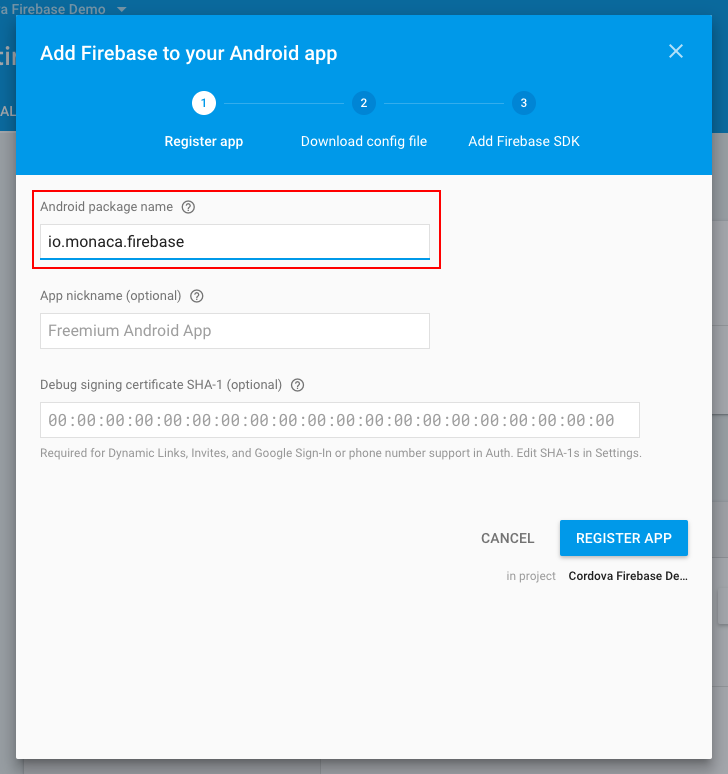

3. Enter your package name (You can find that by going to Config → Android App Settings). Then, click REGISTER APP.

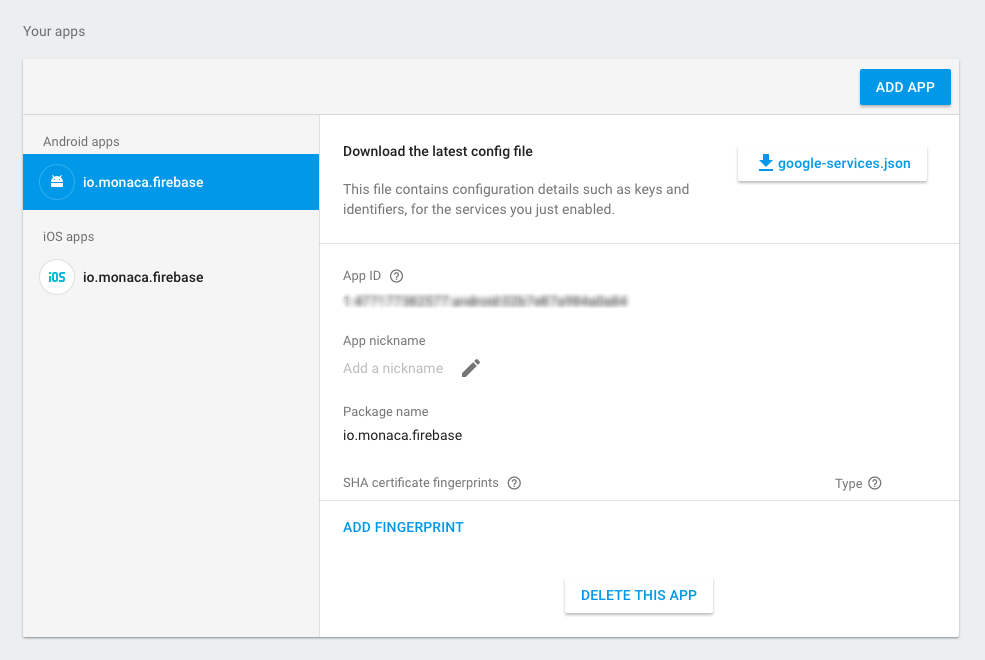

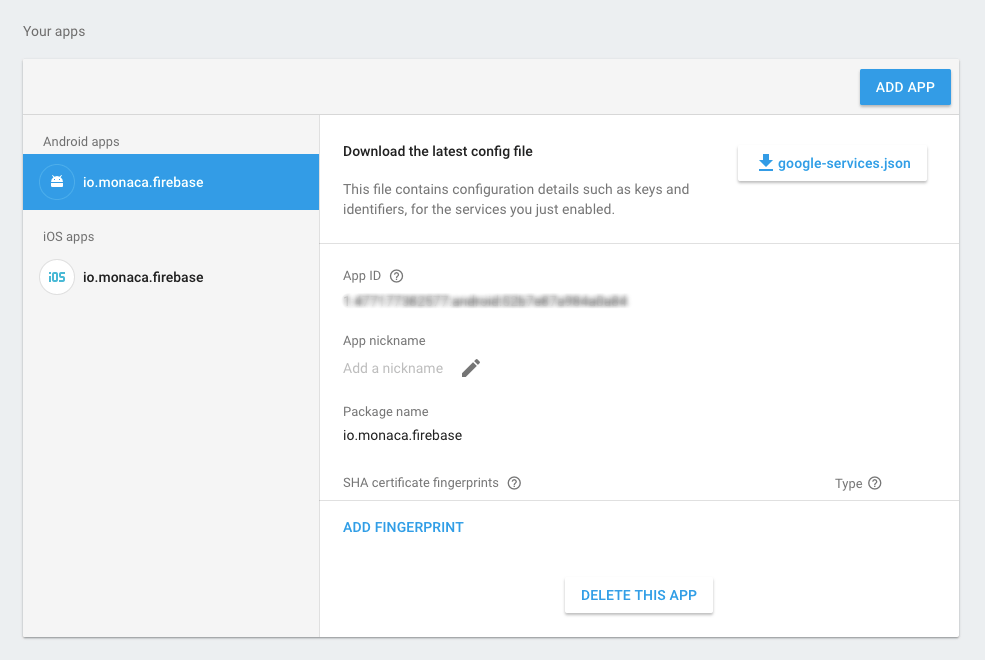

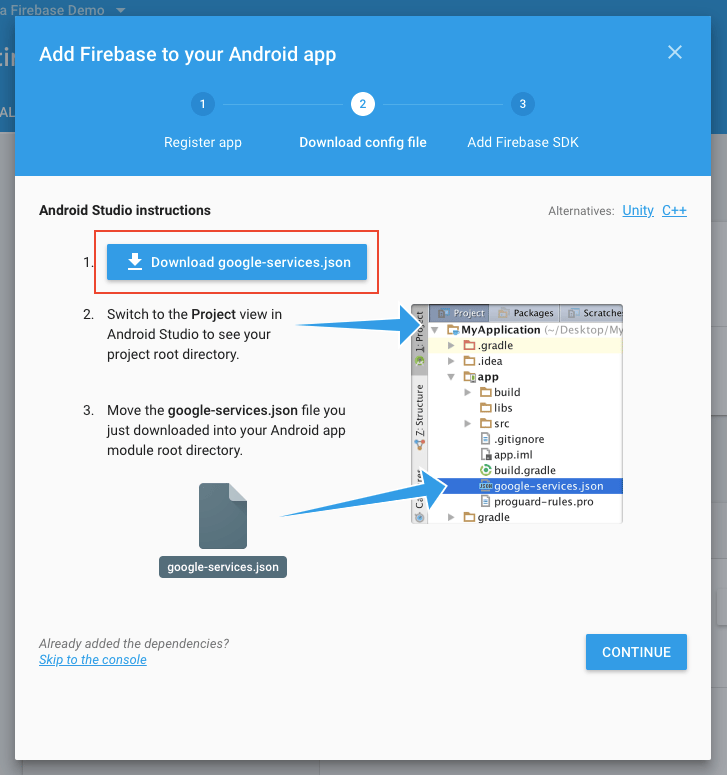

4. Download the google-services.json file and place it in the root folder of your project. After that, click CONTINUE.

5. You will see instructions on how to add the Firebase SDK into our project. However, we are not developing the app natively so we can skip this step. Just click FINISH to complete the configuration. After that, you should see your Android app in the Firebase overview page.

Adding the plugin to the Monaca IDE

1. From the IDE menu, go to Config → Manage Cordova Plugins .

2. Click the Import Cordova Plugin button. Then, you can choose to import the plugin using a ZIP file or a URL/package name.

Usage

After importing the plugin to the project, you can initialize the push notifications. Please make sure to call the plugin API after the Cordova is loaded. For example:

document.addEventListener("deviceready", onDeviceReady, false);
function onDeviceReady() {

    // Notification initialization
    push = PushNotification.init({
        ios: {
            badge: true
        }
    });

    // Checking notification permission
    $interval(checkNotifPermiss, 500);
    // Updating App Icon Badge Number
    $interval(updateAIBN, 500);

    // When receiving a push notification
    push.on('notification', data => {
        receiveNotifCB(data);
    });
}

API references

This section describes some of the main functions used in our demo. For complete API references, please refer to the repository.

init()

Initialize push notifications.

PushNotification.init(options)

Parameter

Name	Type	Description
options	Object	An object describing relevant specific options for all target platforms.

iOS

All iOS Boolean options can also be specified as String.

Attribute	Type	Default	Description
ios.voip	Boolean	false	[optional] If set to true, the device will be set up to receive VoIP Push notifications and the other options will be ignored since VoIP notifications are silent notifications that should be handled in the notification event.
ios.alert	Boolean	false	[optional] If set to true, the device shows an alert on receipt of notification.*
ios.badge	Boolean	false	[optional] If set to true, the device sets the badge number on receipt of notification.*
ios.sound	Boolean	false	[optional] If set to true, the device plays a sound on receipt of notification.*
ios.clearBadge	Boolean	false	[optional] If set to true, the badge will be cleared on app startup.
ios.categories	Object	{}	[optional] The data required in order to enabled Action Buttons for iOS. See Action Buttons on iOS for more details.

*: Please note that the value you set this option to the first time you call the init method will be how the application always acts. Once this is set programmatically in the init method it can only be changed manually by the user in . This is normal iOS behaviour.

Android

Attribute	Type	Default	Description
android.icon	String		[Optional] The name of a drawable resource to use as the small-icon. The name should not include the extension.
android.iconColor	String		[Optional] Sets the background color of the small icon on Android 5.0 and greater. [Supported Formats](http://developer.android.com/reference/android/graphics/Color.html#parseColor(java.lang.String))
android.sound	Boolean	true	[Optional] If set to true, it plays the sound specified in the push data or the default system sound.
android.vibrate	Boolean	true	[Optional] If set to true the device vibrates on receipt of notification.
android.clearBadge	Boolean	false	[Optional] If set to true the icon badge will be cleared on init and before push messages are processed.
android.clearNotifications	Boolean	true	[Optional] If set to true, the app clears all pending notifications when it is closed.
android.forceShow	Boolean	false	[Optional] Controls the behavior of the notification when app is in foreground. If true and app is in foreground, it will show a notification in the notification drawer, the same way as when the app is in background (and on('notification') callback will be called only when the user clicks the notification). When false and app is in foreground, the on('notification') callback will be called immediately.
android.topics	Array	[]	[Optional] If the array contains one or more strings each string will be used to subscribe to a FcmPubSub topic.
android.messageKey	String	message	[Optional] The key to search for text of notification
android.titleKey	String	title	[Optional] The key to search for title of notification

Return Value

• pushObject

Example

const push = PushNotification.init({
  android: {},
  browser: {
    pushServiceURL: 'http://push.api.phonegap.com/v1/push'
  },
  ios: {
    alert: 'true',
    badge: true,
    sound: 'false'
  },
  windows: {}
});

hasPermission()

Check whether the push notification permission has been granted on the device.

PushNotification.hasPermission(successHandler)

Parameter

Name	Type	Description
successHandler	Function	Is called when the api successfully retrieves the details on the permission.

Callback Parameters

• successHandler

Name	Type	Description
data.isEnabled	Boolean	Whether the permission for push notifications has been granted.

Return Value

• Promise

Example

PushNotification.hasPermission(data => {
  if (data.isEnabled) {
    console.log('isEnabled');
  }
});

getApplicationIconBadgeNumber()

Get the current badge count visible when the app is not running

push.getApplicationIconBadgeNumber(successHandler, errorHandler)

Parameter

Name	Type	Description
successHandler	Function	Is called when the api successfully retrieves the icon badge number.
errorHandler	Function	Is called when the api encounters an error while trying to retrieve the icon badge number.

Callback Parameters

• successHandler

Name	Type	Description
n	Number	An integer which is the current badge count

Return Value

• Promise

Example

push.getApplicationIconBadgeNumber(
    n => {
        $scope.aibn = n;
    },
    () => {
        console.log('Error getting the number');
    }
);

setApplicationIconBadgeNumber()

Set the badge count visible when the app is not running.

push.setApplicationIconBadgeNumber(successHandler, errorHandler, count)

Parameter

Name	Type	Description
successHandler	Function	Is called when the api successfully retrieves the icon badge number.
errorHandler	Function	Is called when the api encounters an error while trying to retrieve the icon badge number.
count	Number	Indicates what number should show up in the badge. Passing 0 will clear the badge. Each notification event contains a data.count value which can be used to set the badge to correct number.

Return Value

• Promise

Example

push.setApplicationIconBadgeNumber(
    () => {
        alert("Successfully setting the badge number!");
    },
    () => {
        alert("Fail to set the badge number. Something went wrong...");
    },
    badgeNum
);

push.on()

The event notification will be triggered each time a push notification is received by a 3rd party push service on the device.

push.on('notification', callback)

Callback Parameters

Name	Type	Description
data.message	String	The text of the push message sent from the 3rd party service
data.title	String	[optional] The title of the push message sent from the 3rd party service
data.count	String	The number of messages to be displayed in the badge in iOS/Android or message count in the notification shade in Android. For windows, it represents the value in the badge notification which could be a number or a status glyph.
data.sound	String	The name of the sound file to be played upon receipt of the notification
data.image	String	The path of the image file to be displayed in the notification
data.launchArgs	String	The args to be passed to the application on launch from push notification. This works when notification is received in background. (Windows Only)
data.additionalData	Object	[optional] A collection of data sent by the 3rd party push service that does not fit in the above properties
data.additionalData.foreground	Boolean	Whether the notification was received while the app was in the foreground
data.additionalData.coldstart	Boolean	Will be true if the application is started by clicking on the push notification, false if the app is already started.
data.additionalData.dismissed	Boolean	Is set to true if the notification was dismissed by the user

Return Value

• Promise

Example

push.on('notification', data => {
  console.log(data.message);
  console.log(data.title);
  console.log(data.count);
  console.log(data.sound);
  console.log(data.image);
  console.log(data.additionalData);
});
